Features of ROM2box

Download Links:

• ROM2box V2.2 full free win 64bit: telegram-Main/ Mirror
• set display to 100%, you can Increase font size Instead of scaling

Changes in V2.2:

• added mtk scatter flash in fastboot mod (unlocked bootloader require and some partition may require bootloader_critical to be unlocked) if the fastboot is accessible you can flash almost all unlockable phone (like tecno, infinix, micromax) without a DA or Auth File. first unlock bootloader from fastboot section extract firmware to main tool folder then go to Mediatek/SP-Flash-tools/fastboot-scatter-flasher (Note- it’s a beta feature and use at own risk, have not tested on dual slot device (A/B)
• added oppo ofp decrypt (python require)
• fix some known issues
• added partition read option for qcom

Note:

• Run Install.bat & type yes to replace old files
• must wipe userdata after flashing Mediatek firmware
• if any bootloop after flashing, Just Write preloader (which is dumped on every MTK function)
• for Oppo/Realme flashing delete all partition from firmware folder Include Name ‘Oppo’
• it will not send a patch.xml to zero the userdata partition.

Installation:

• disable defender
• Portable, Just extract
• Run Install.bat to replace old files in temp
• updates- Extract update file in Main directory and overwrite all

Require USB Driver:

• USBDK: Download
• MTK: VCOM Driver
• SPRD USB COM driver
• QCOM 9008 USB driver
• OPPO MTK QCOM Driver

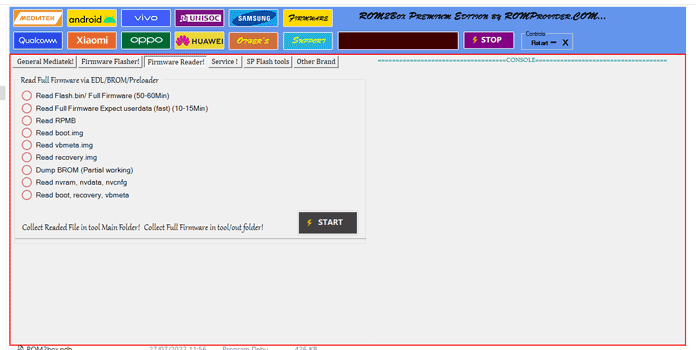

Read MTK Firmware:

• there are 2 options to Read Firmware, First flash.bin and other Partitions

Steps:

• connect phone in VCOM/BROM Mod, Go to Mediatek/Firmware reader and Click desire button (flash.bin take huge time to read userdata partition, Partition option does not read userdata it will take just 15minut)

Read QCOM Firmware:

• EMMCDL Single Method, FH-Loader Not Included

Steps:

• Go to QCOM/Firmware Reader Select Firehose, Select USB COM and Click Read.

Note:

• userdata partition will be skipped (it will take huge time so removed from reading script)
• any partition contain number like keymaster1 can’t be readed ( you can manually read that type of partitions- Go to ROM2box/qcom edit parttable file and add all the partition that contain a number from parttablex file once done run read.exe for emmc and readu.exe for ufs (make sure you have read the full firmware via ROM2box before using this process)

MI Account bypass:

• Go to xiaomi select your device, connect phone to computer (short test point) wait for device detection once COM detected click bypass MI account/persist

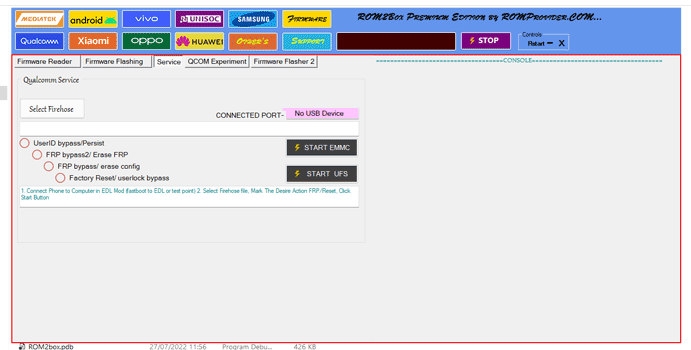

QCOM FRP bypass:

• Go to QCOM select firehose, connect phone to computer (short test point) wait for device detection once COM detected click ‘bypass FRP’

QCOM Pattern bypass:

• Go to QCOM select firehose, connect phone to computer (short test point) wait for device detection once COM detected click ‘Reset/userlock bypass’

Vivo Pattern bypass:

• Go to Vivo select device, connect phone to computer (short test point) wait for device detection once COM detected click ‘Reset/userlock bypass’

Oppo Pattern bypass:

• Go to Oppo select device, connect phone to computer (short test point) wait for device detection once COM detected click ‘Reset/userlock bypass’

Huawei ID bypass:

• Go to Huawei select device, connect phone to computer (short test point) wait for device detection once COM detected click ‘ID bypass’ (experimental and not work on many model)

unsupported QCOM devices Testing with No Auth Firehose:

• Go to QCOM/Experiment tab select for suitable Programmer (more then 450+ patched firehose added) connect phone to computer (short test point) wait for device detection once COM detected Run the function you want..

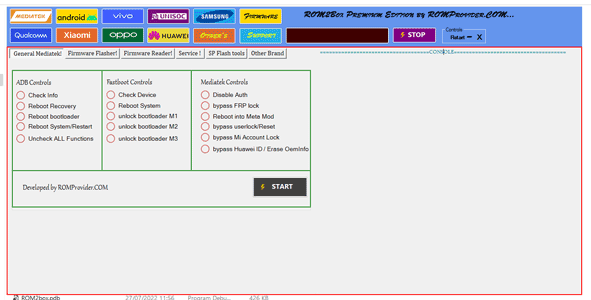

MTK Disable Auth:

• Go to Mediatek/main tab mark ‘disable auth‘ click ‘start‘ button

Mediatek unlock bootloader:

• Go to Mediatek/service/bootloader unlock

QCOM Disable Auth:

• all Included devices pre patched

Flash QCOM Firmware:

• got to qcom/firmware flasher load xml &  programmer file from firmware folder
• connect phone in edl mod, once device detected click start button

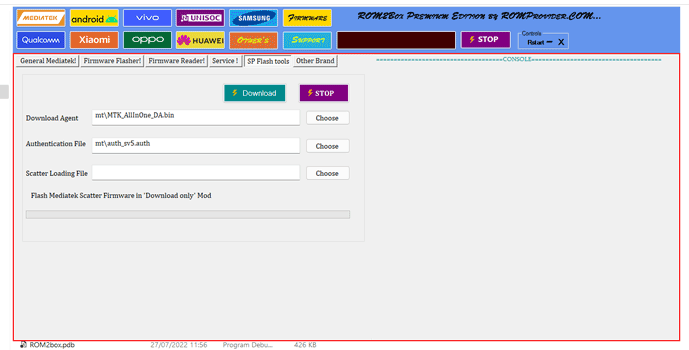

Flash Mediatek Scatter Firmware:

• go to mediatek main tab and select disable auth follow instructions
• then go to mediatek/sp-flash-tools tab load scatter file, load da file, load auth file and click ‘Download’ button Now connect phone to computer (Press volume up + volume – & insert usb cable)

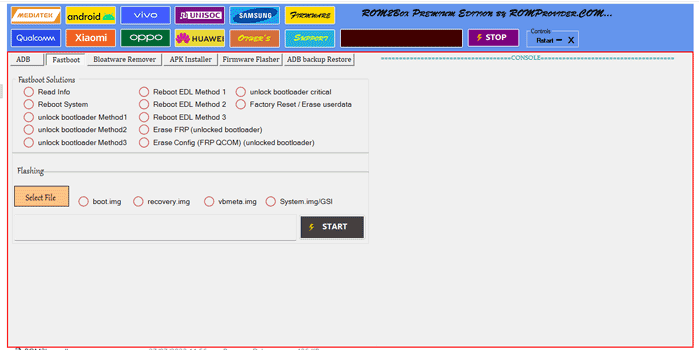

Flash Scatter Firmware Via Fastboot:

• extract firmware to main tool folder (must require) run rom2box.exe go to Mediatek/SP flash tools/ fastboot scatter flasher/ locate scatter file, connect phone in fastboot mod and click ‘START’ button, make sure bootloader is unlocked

Other:

• try yourself

Credit:

• MTK Client from B.Kerler
• Platform tools from Google
• Android LIB from Regaw@XDA
• Spreadtrumn tools from unisoc
• SP Flash tools from Mediatek
• compile & GUI by ROMProvider.COM (Source available for Download)
